Not all China Navy's Marine units are trained for offensive operations, part of its orbat are reserved for stationary South China Sea island garrison. With the introduction of Mengshi, they now have modern motorized vehicles on those "newly built" military garrison posts.
Vegetation suggests Yongxing island
Saturday, December 02, 2017

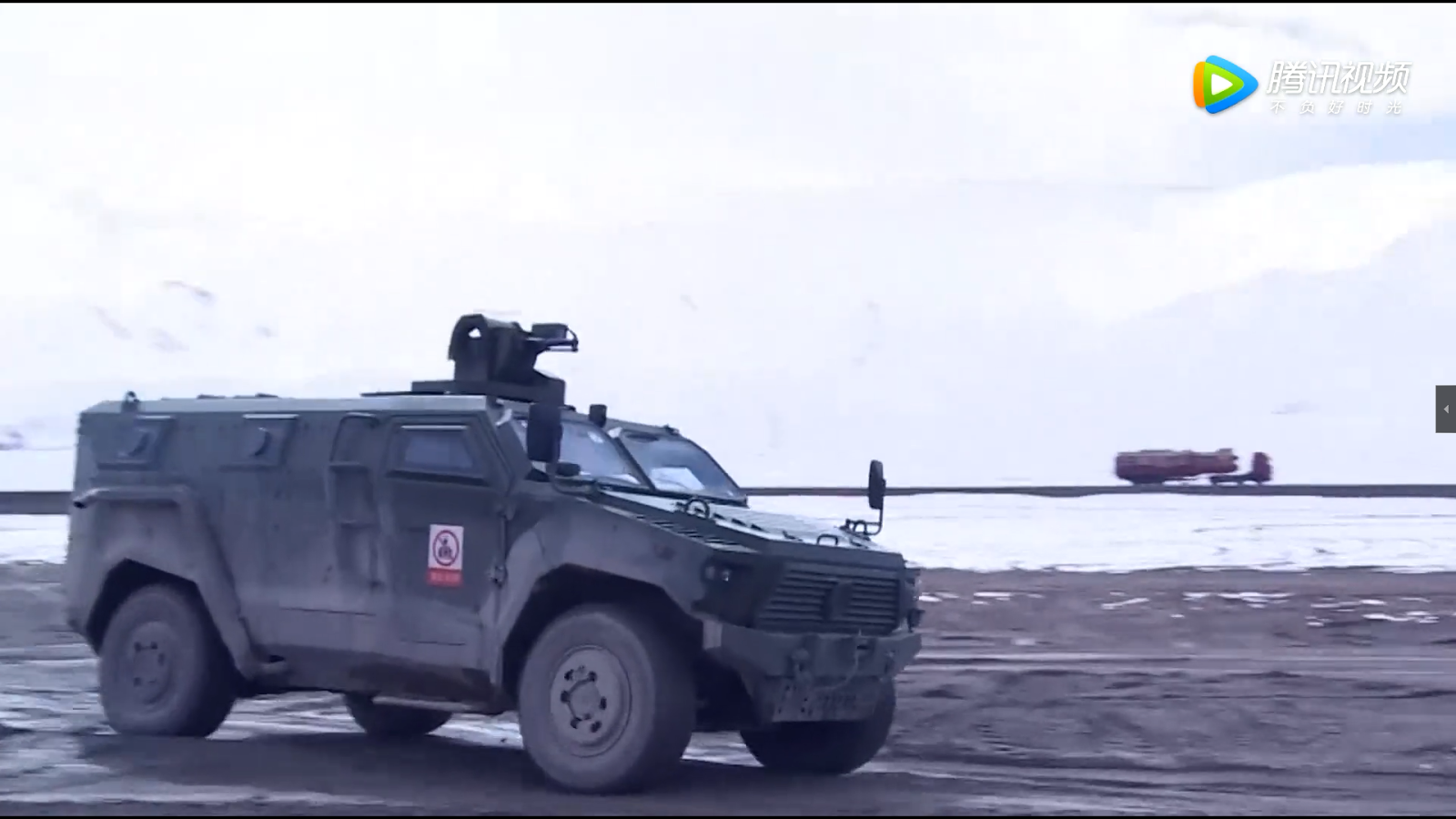

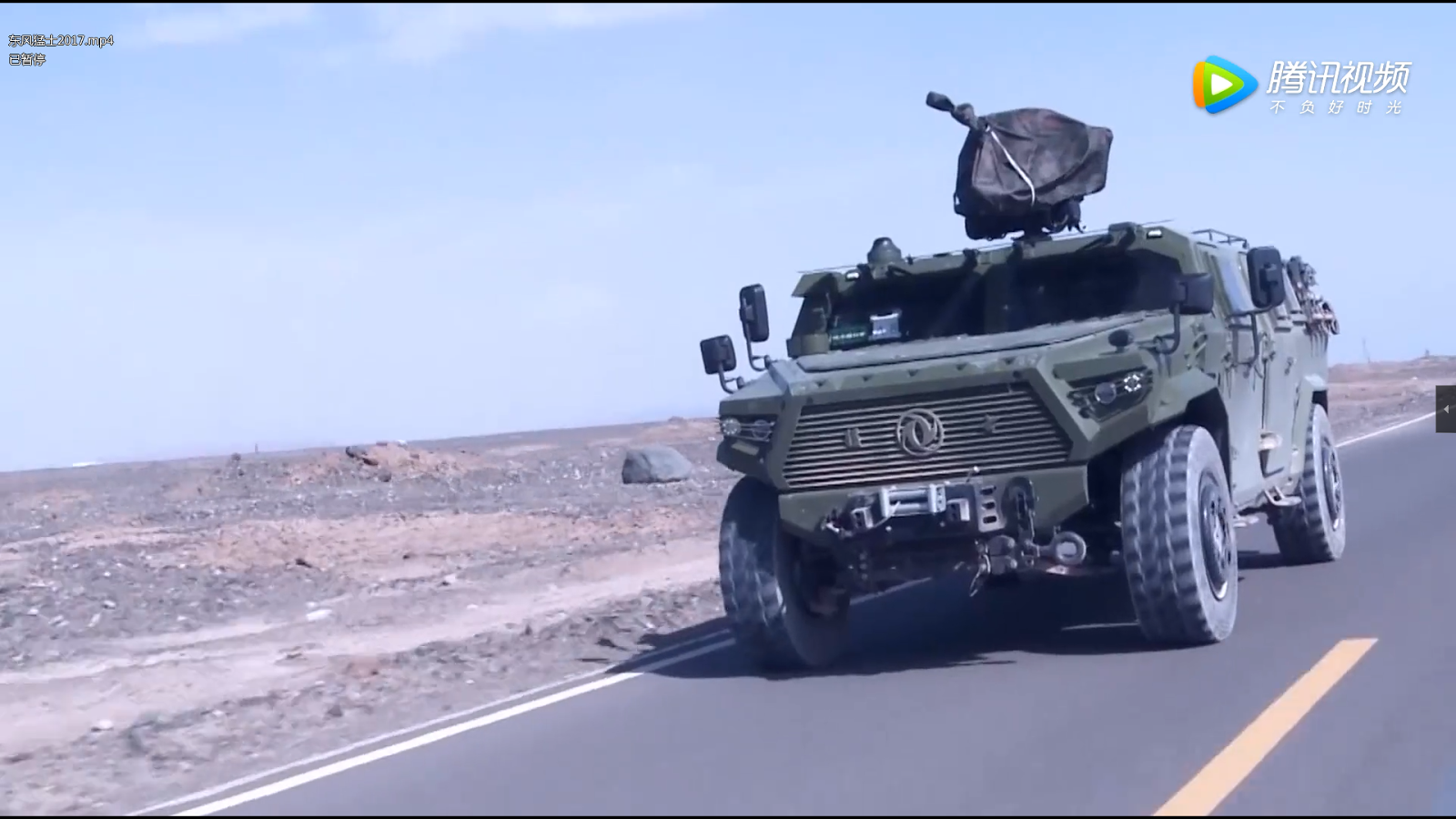

Screen captures of the day: Next Generation of Dongfeng Light Utility Vehicle Under Eval in Tibet
Beer cup holder is extra -- I can totally imagine they would over charging such an essential item

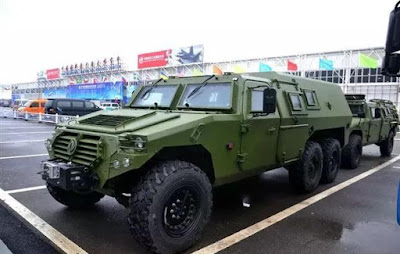

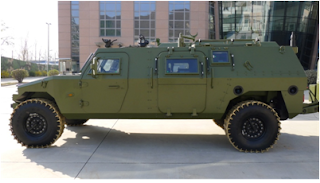

Here is the in-service model can be ordered at Alibaba for ~100,000 USD per copy
https://www.alibaba.com/product-detail/2017-new-and-strong-armored-military_60665244281.html?spm=a2700.7724857.main07.132.63b2d37aEaBaZT
Tech/Spec on the current model at posted at Alibaba
Technical Specification Of Dongfeng Armored Truck
| Item | Armored Vehicle | Armored Vehicle | ||
| (6 passengers) | (10 passengers) | |||
| Size Specification | Total Length(mm) | 5050 | 5750 | |
| Total Width(mm) | 2350 | |||
| Total Height(mm) | 1860 | |||
| Wheelbase(mm) | 3300 | 4000 | ||
| Front Overhang(mm) | 755 | |||
| Rear Overhang(mm) | 995 | |||
| The Height between the back floor and the Ground(mm) | 845(Full load)/935(Empty load) | |||
| The Height between the draw hook center and the Ground(mm) | 645(Full load)/725(Empty load) | |||
| The distance between the back of Single Cab and the front axle.(mm) | 2150 | |||
| Effective using length on the Back(mm) | 2050 | 2750 | ||
| Tread | Front(mm) | 1902 | ||
| Back(mm) | 1906 | |||
| Weight Specification | Chassis Weight(kg) | 3900 | 4200/4800 | |
| Front Axle Weight(kg) | 2200 | 2300/2300 | ||
| Rear Axle Weight(kg) | 1700 | 1900/2500 | ||
| The Height between unloading barycentre and the Ground(mm) | 870 | |||
| The maximum allowable total weight(kg) | 5700 | 6100 | ||
| Front axle maximum total mass | 2500 | 2700 | ||
| Rear axle maximum total mass | 3200 | 3400 | ||
| maximum laden mass(kg)(including the vehicle back strength weight) | 2100 | 1600/1200 | ||
| Maxium allowable Height between the top weapon center and the rear floor(mm) | 720 | |||
| Mobility parameters | Set shipping and handling mooring point and tied reinforcement, thus it can make whole bundle and lifting, and adapt Il-76, eight transport aircraft shipments and 069-type landing craft, N16-type railway flat car transport requirements; also meet the Il-76 airdrop requirements. | |||
| Max. Speed(km/h) | 130 | |||
| specific power(kw/t) | 24.5 | |||
| 0~80km/acceleration time(s) | 23 | |||
| App/Dep(°) | 47/40 | |||
| minimum diameter of turning diameter(m) | 15 | 17.5 | ||
| Ramp Angle(°) | 31.5 | 26 | ||
| minimum ground clearance(m) | 410 | |||
| The largest moving side slope(%) | ≥40 | |||
| fording depth (m) | 1.2 | |||
| Vertical obstacle height(mm) | 450 | |||
| The trench width(mm) | 700 | |||
| driving range(km) | ≥600 | |||
| Body designs that the front can prevent Type 53, 7.62 mm, Wo-109C typearmor-piercing incendiary in distance 100 meters; the back and side can prevent 7.62 mm ordinary steel core bullet in distance 100 meters. Roof plate thickness is 3 mm, steel underbody thickness is 4 mm. | ||||
| Survivability performance | The tire has the function of keep moving in deflated situation,if any two tires deflated, the vehicle still can move 30 kilemeters in speed 30-40 meters/hours. And its oil tank is with explosion suppression measure. | |||
| The vehicle front is equiped with towing hook, can equiped with winch by optional, rear part is with traction hook, so it can realize self-help and mutualaid. | ||||
| It can install hang camouflage nets, occupant safety belt, install air defense lamp.The car is equipped with extinguishing equipment. Optionally with infrared night driving device. | ||||
| Good pilot view, easy operation;Convenient for passenger sitting and easy getting on and off. | ||||
